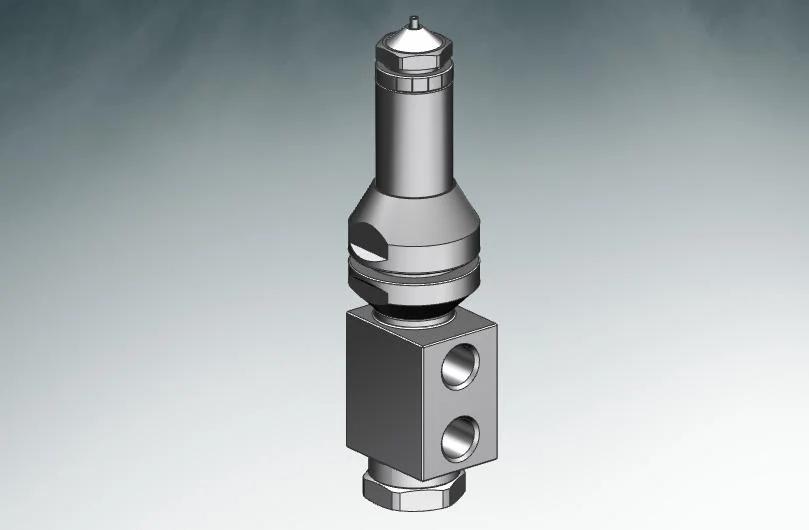

Benelabo Wurster bottom spray guns cover six ELS-diPQ models for lab-to-production fluid beds — anti-clogging tips, independent liquid/air lines and quick-detach nozzles for continuous pellet film coating.
Highlights
Gun centered to the Wurster partition keeps the spray cone on the fluidizing ring — film thickness stays even.
Independent liquid/air lines let you tune spray rate and atomization separately.
Quick-detach nozzles and needle-valve anti-clogging tips.
Applications
- Micro-pellet sustained-release film coating
- Layering powders onto pellets (drug layering)
- Taste-masking and moisture-protection films
Product Images
Full Specifications
| Model | Nozzle φ mm | Spray ml/min | Angle | Fluid bed scale | Evidence |
|---|---|---|---|---|---|
| ELS-diPQ Ⅰ | 0.6–1.0 | 5–20 | 10–30° | 0.2–1 kg lab Wurster | Manufacturer spec |
| ELS-diPQ 5L | 0.6–1.2 | 5–20 | 10–30° | 1–5 kg lab | Manufacturer spec |
| ELS-diPQ 15 | 0.8–1.2 | 10–50 | 15–30° | lab/pilot | Manufacturer spec |
| ELS-diPQ 15L | 1.0–1.8 | 50–200 | 15–30° | pilot | Manufacturer spec |
| ELS-diPQ 30 | 1.0–2.0 | 150–400 | 15–30° | production | Manufacturer spec |
| ELS-diPQ 30A | 1.0–2.0 | 150–400 | 15–30° | production, improved body | Manufacturer spec |
FAQ
Why is my Wurster bottom spray gun clogging during pellet coating?
Typical causes are binder drying at the nozzle tip and misaligned gun-to-partition positioning. Benelabo guns use anti-clogging tip design, precise centering to the partition, and quick-detach nozzles so cleaning happens between batches, not during them.
Can the bottom spray gun replace my original imported spare parts?
Yes — gun sets are engineered to your machine’s mounting and connections, delivering equivalent atomization with shorter lead times and lower maintenance cost.
How do I achieve uniform film coating on pellets?
Stable atomization (constant liquid/air ratio), correct gun-to-bed distance and a consistent spray rate. We size all three from your pellet size and coater model, and confirm by sampling trials.
