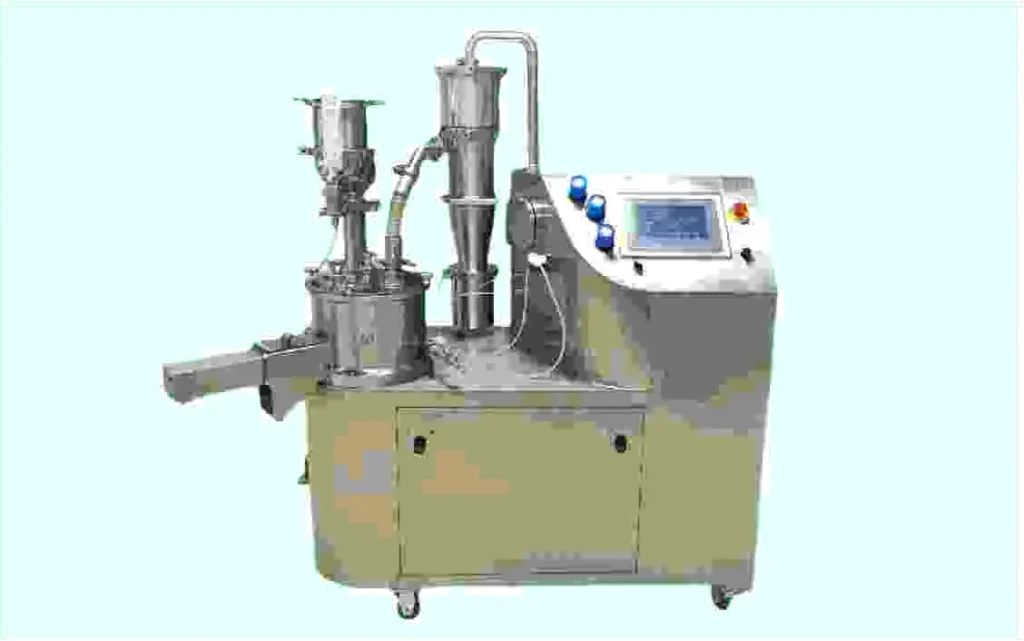

LBZ centrifugal pellet machines nucleate, grow and coat pellets in one bowl from a 0.2 kg batch — φ0.25–20 mm pellets across 315/700/1000 mm bowl sizes.
Highlights
Nucleate, grow and coat pellets in the centrifugal bowl — extrusion line steps collapse into one machine.
LBZ-315 starts R&D; 700 and 1000 carry pilot and production.
Film and functional coatings apply without transferring media.
Applications
- Nucleation and pellet growth
- Powder layering onto cores
- Taste-masking and functional coatings
Product Images
Full Specifications
| Model | Bowl φ | Batch class | Evidence |
|---|---|---|---|
| LBZ-315 | 315 mm | R&D, from 0.2 kg | Manufacturer spec |
| LBZ-700 | 700 mm | pilot | Manufacturer spec |
| LBZ-1000 | 1000 mm | production | Manufacturer spec |
FAQ
What machine can do pelletizing, granulating and coating in one unit?
The LBZ series. Disc module changes switch between centrifugal pelletizing, tangential-spray pelletizing and spray coating in the same bowl — from 0.2 kg batches (LBZ-315) to 100 kg (LBZ-1000).
Which LBZ model fits pilot scale pellet development?
LBZ-700 (2.5–20 kg/batch) is the standard pilot size; LBZ-315 covers formulation screening from 0.2 kg with scale-up factor ≤2 between sizes.
How does centrifugal pelletizing compare with extrusion-spheronization?

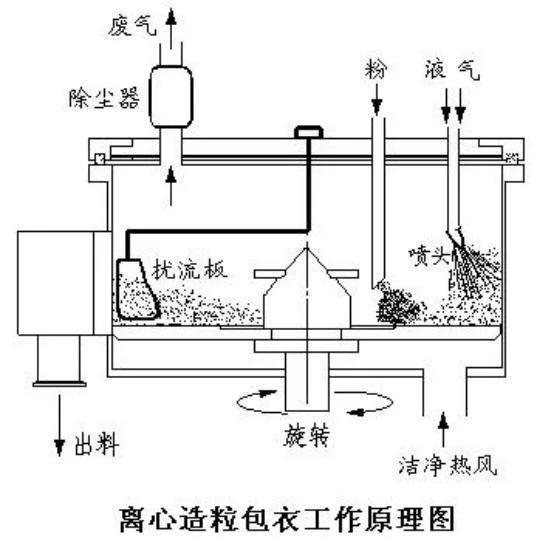

Centrifugal pelletizing builds pellets layer-by-layer in one bowl (starting from nuclei) and adds coating in the same machine; extrusion-spheronization extrudes and rounds for denser pellets at higher throughput. Route comparison table in /pelletizing-system/.
