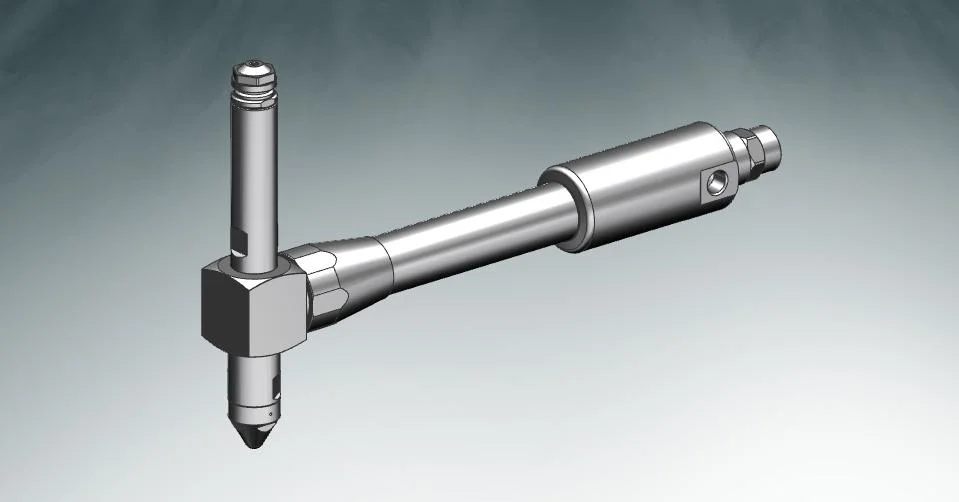

Five BY-series coating spray guns cover tablet pans from lab to production with independent pattern/air control and multi-gun spray bars — 0.6–2.2 mm nozzles, 10–250 ml/min per gun.
Highlights
BY-Ⅱ-4K controls atomizing air and pattern air independently — shape the spray without stopping the coater.
Bayonet-style structure opens and cleans in place; multi-gun bars re-position without re-aiming.
3K guns for lab pans, 4K for pilot/production, BYQⅢ-10 for high-throughput bars.
Applications
- Tablet film coating pans (lab/pilot/production)
- Sugar-film and functional coatings
- Continuous coating lines

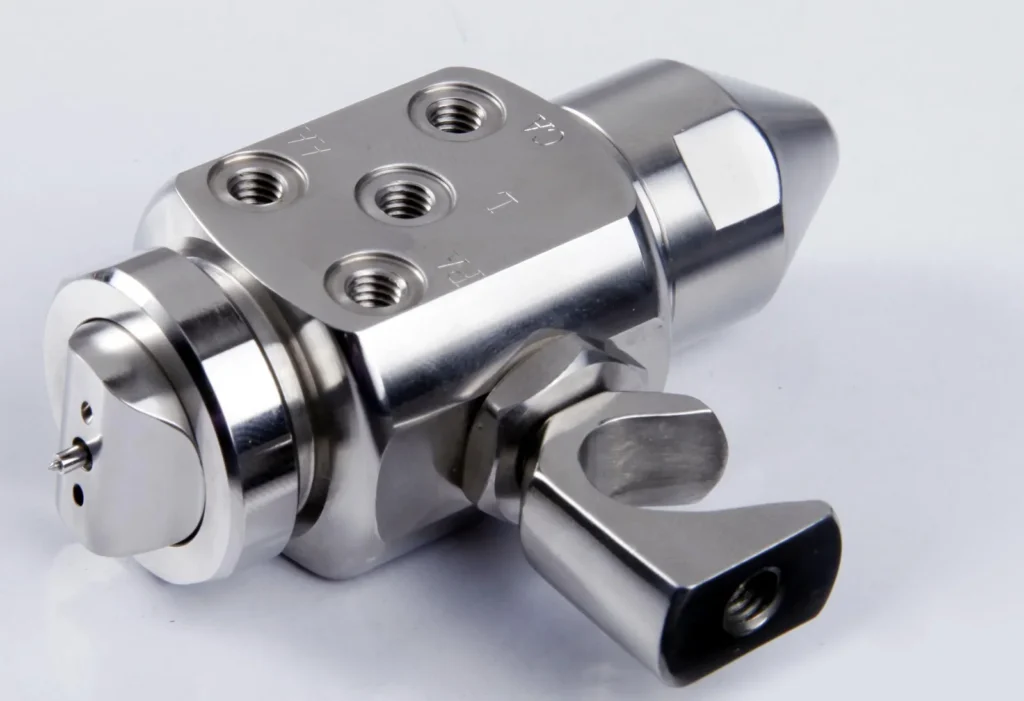

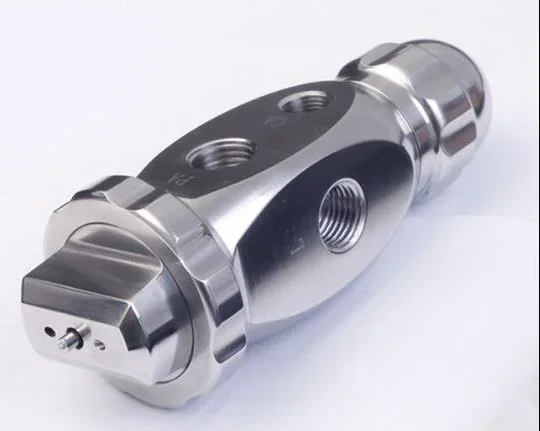

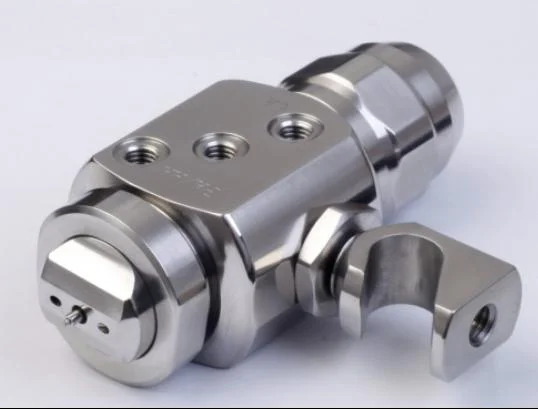

Product Images
Full Specifications
| Model | Nozzle φ mm | Spray ml/min | Angle | Scale | Evidence |
|---|---|---|---|---|---|
| BY-Ⅰ-3K | 0.6–1.2 | 5–50 | 50–80° | lab pans | Manufacturer spec |

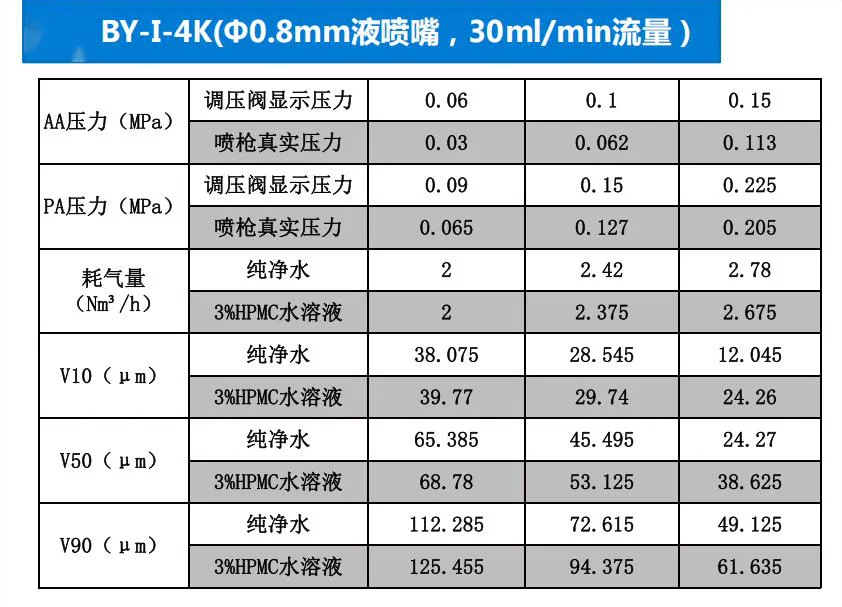

| BY-Ⅰ-4K | 0.6–1.2 | 5–60 | 10–60° | lab, split air control | Manufacturer spec |
| BY-Ⅱ-3K | 0.8–2.2 | 50–250 | 50–80° | pilot & production | Manufacturer spec |
| BY-Ⅱ-4K | 0.8–2.2 | 50–250 | 10–60° | pilot & production, split air | Manufacturer spec |
| BYQⅢ-10 | 1.2–2.2 | 30–180 | 10–55° | multi-gun bars | Manufacturer spec |
FAQ
Which nozzle size should I choose for film vs sugar coating?
Film coating typically runs φ0.8–1.0 mm at lower spray rates; sugar and suspension-heavy coatings run φ1.0–1.2 mm. Final choice depends on your solid content and pan load — send the coating formulation for sizing.
Can your coating spray gun replace my imported tablet coater gun?
Yes — guns are built to your coater’s lance mounting, spray bar pitch and fluid/air connections as a drop-in replacement.
How do I reduce tablet coating weight variation?
Three controls: stable atomization (constant air/liquid ratio), consistent gun speed and overlap (multi-gun swinging on large pans), and clean, correctly sized nozzles. All three are addressed in the BY series design.
