S-LAB — Five Powder Processes on One Lab Bench

Name: S-LAB — Five Powder Processes on One Lab Bench
Brand: Benelabo

One 0.75 kW bench machine runs five powder duties from ~30 g batches — and uses the same chamber principles as our production mills, so lab results scale.

5processes on one bench

0.75 kWtotal drive

30 gmin batch class

Same chamberscales to production

Highlights

Five duties, one 0.75 kW bench

Milling, granulating, sizing and more on a single lab frame — one machine covers formulation screening.

Results that scale

Same chamber principle as FSZ/FSJ production mills — lab distributions reproduce at scale.

Small batches, real data

From ~30 g you get particle-size distributions comparable to production runs.

Applications

Formulation screening
Mill selection studies
Scale-up feasibility (lab→production)

Product Images

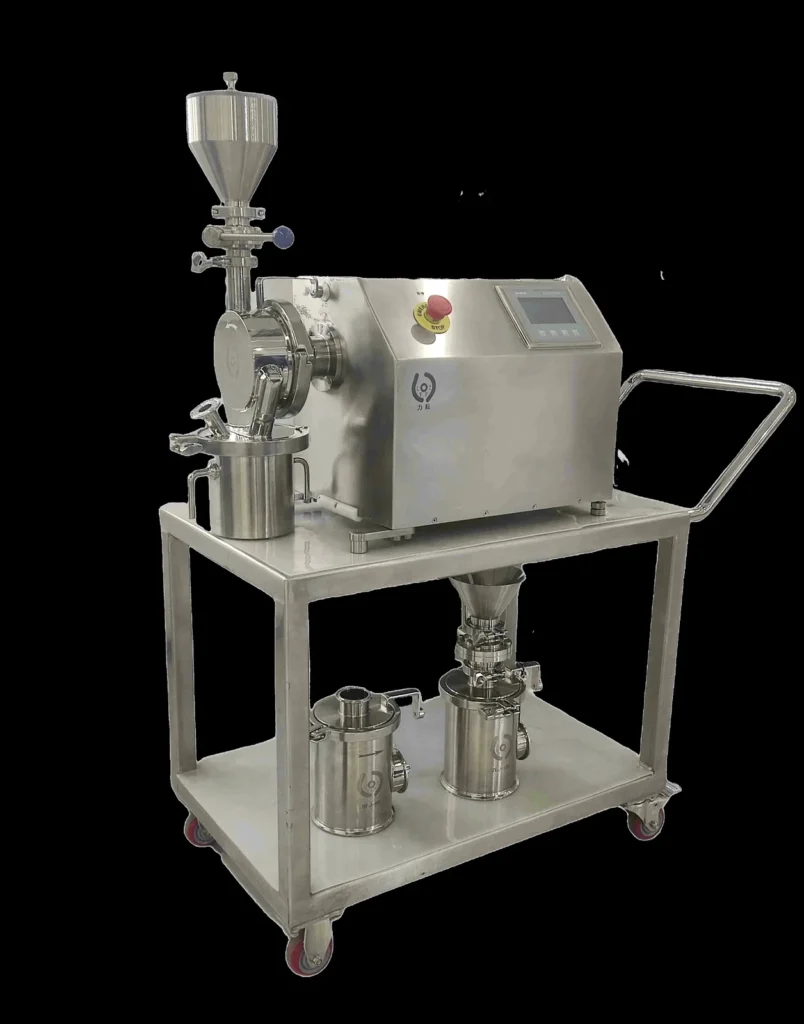

S-LAB multifunctional lab machine for milling, granulating and sieving

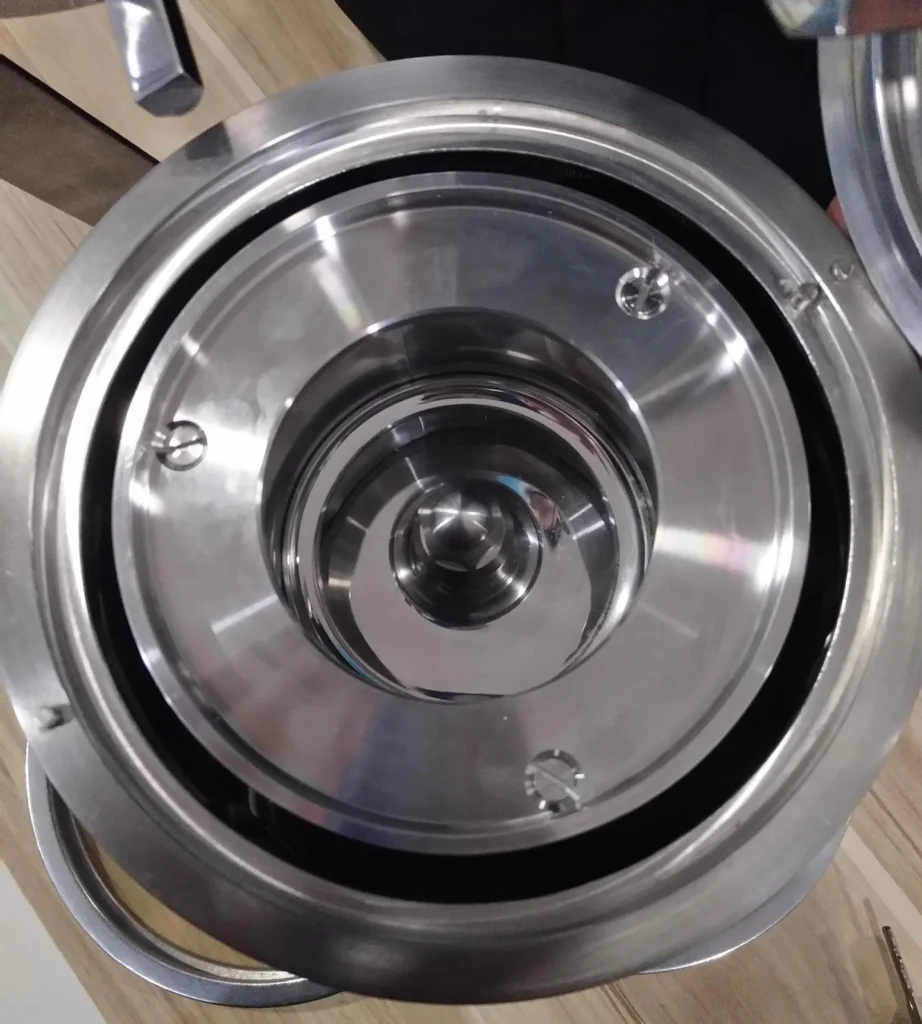

Pin disc rotor and stator pair of S-LAB lab mill

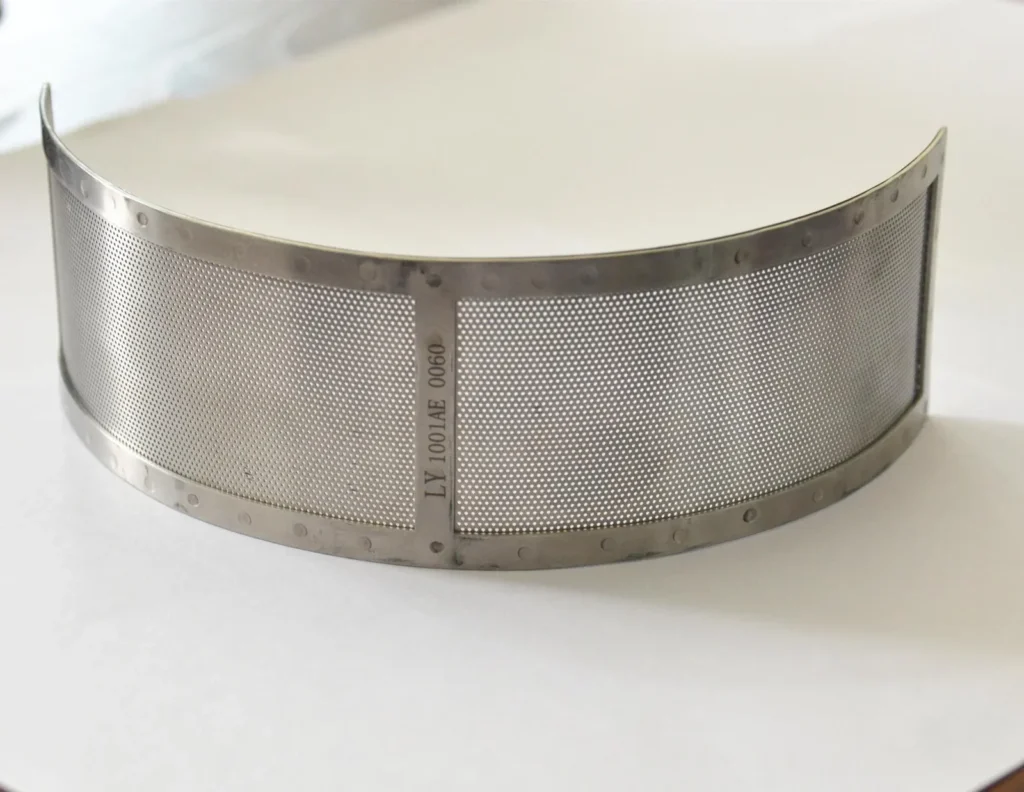

Quick change sieve cylinder of S-LAB multifunction lab machine

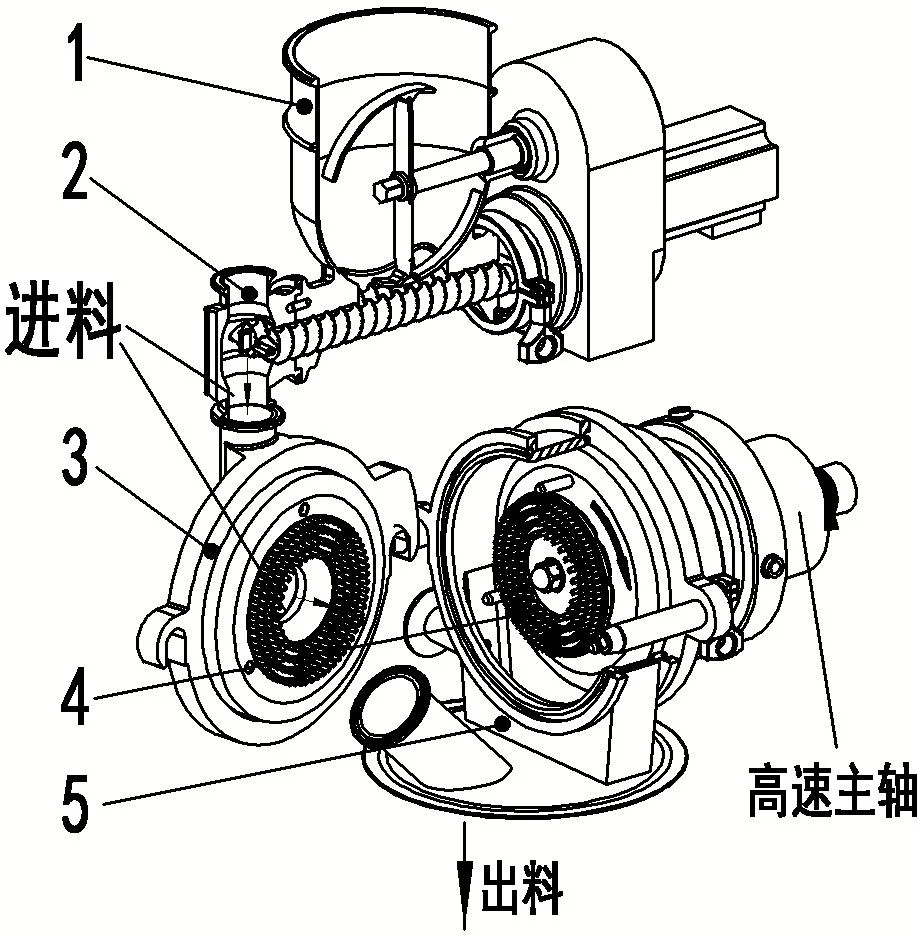

Exploded assembly diagram of S-LAB lab machine with labeled parts

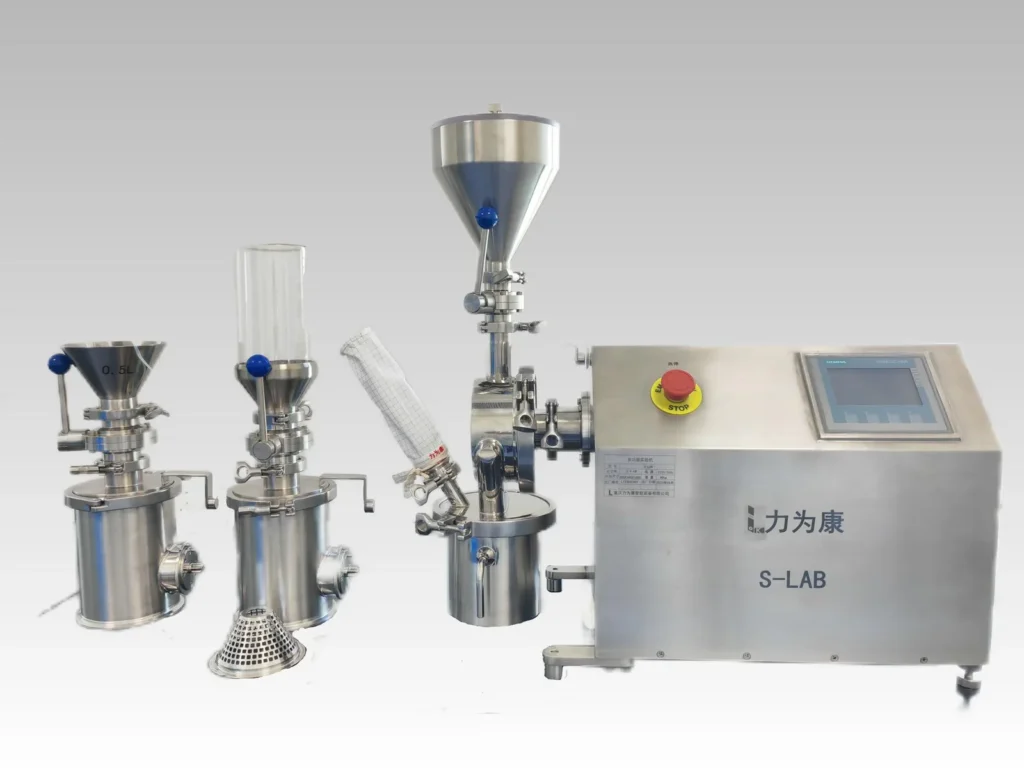

S-LAB lab system complete set with feeder and collection vessels

Full Specifications

Duty	Configuration	Output	Evidence
Impact/pin milling	pin disc set	D90 to ~5 μm class	Manufacturer spec
Hammer milling	hammer rotor	coarse cuts	Manufacturer spec
Granulating	screen + rotor	wet/dry sizing	Manufacturer spec
Sieving	sieve set	distribution	Manufacturer spec
Feeding trials	SFS-10 pairing	continuous feed	Manufacturer spec

FAQ

What equipment do I need for pharmaceutical formulation lab powder work?
One S-LAB covers hammer milling, pin milling (to ≥8 μm), sizing, sieving and twin-screw feeding on a single 0.75 kW bench unit — replacing five single-purpose lab machines.

Will my lab milling results scale up to production?
Yes — the S-LAB’s particle-size distributions reproduce on Benelabo production systems because the milling principles and tooling logic are shared across the range. This is the machine’s core design claim.

How is the S-LAB cleaned for GMP labs?
Every part is quick-release without screws (fast connectors), washable in a standard ultrasonic bath, with internal surfaces polished to Ra ≤0.4 μm — supporting cleaning validation.
