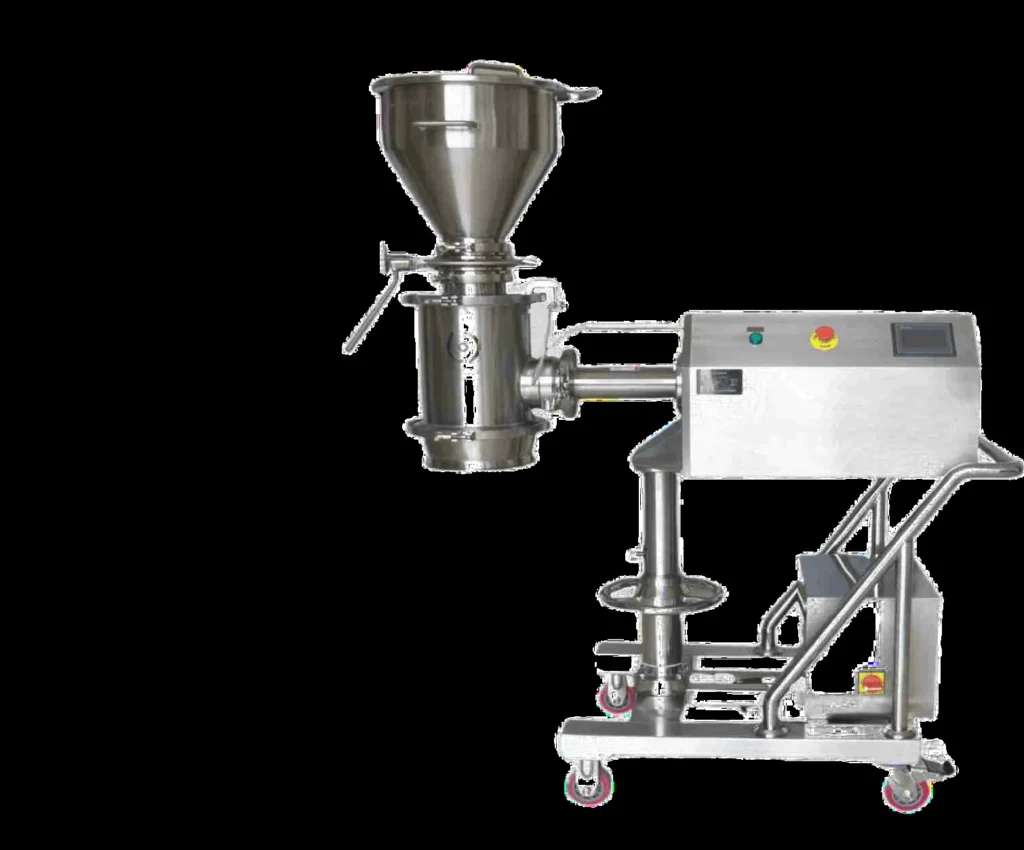

ZLJ mobile granulators size wet and dry granules right where the material is — seven models from 50 kg/h bench duty to 6,000 kg/h lines, with EX explosion-protected options.
Highlights

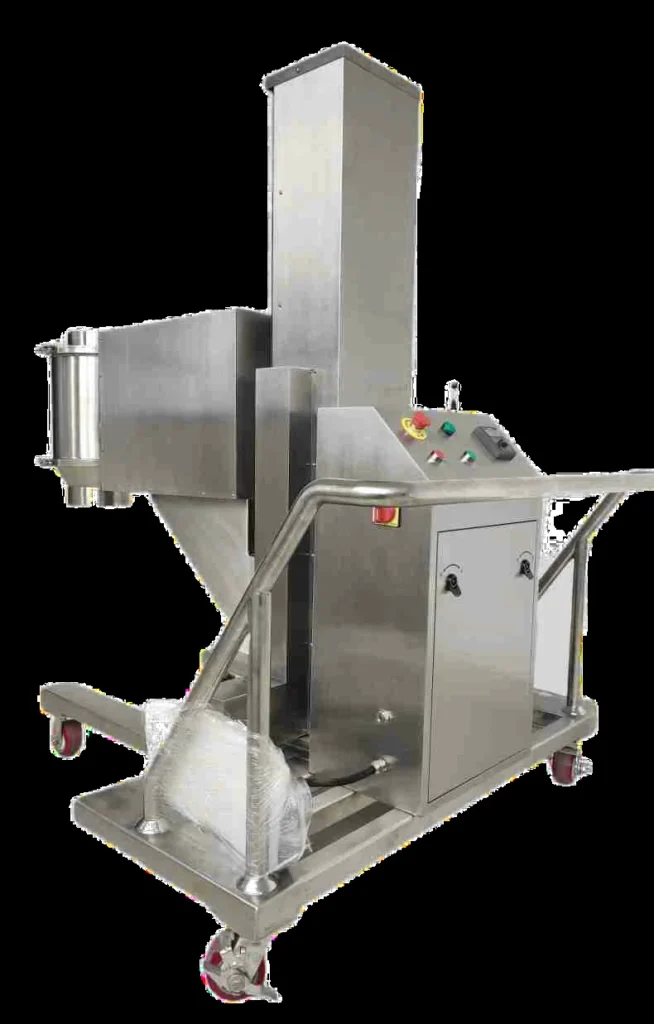

Mobile frame rolls the granulator to the bowl, dryer or mill — no fixed installation.

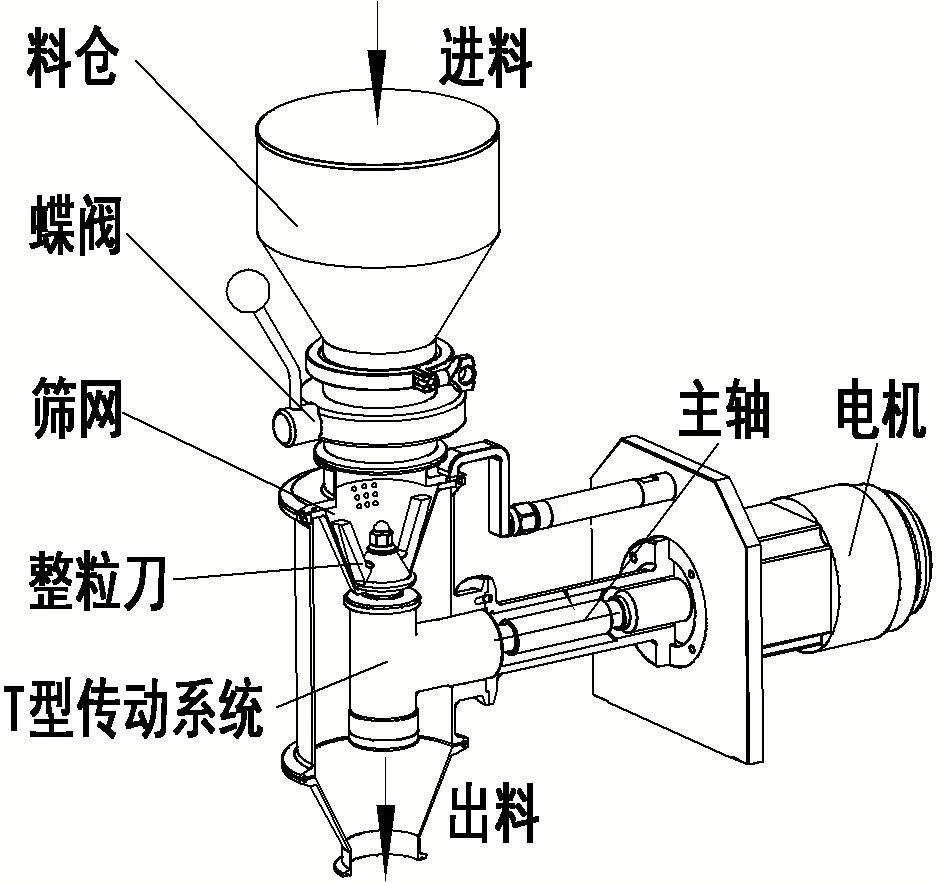

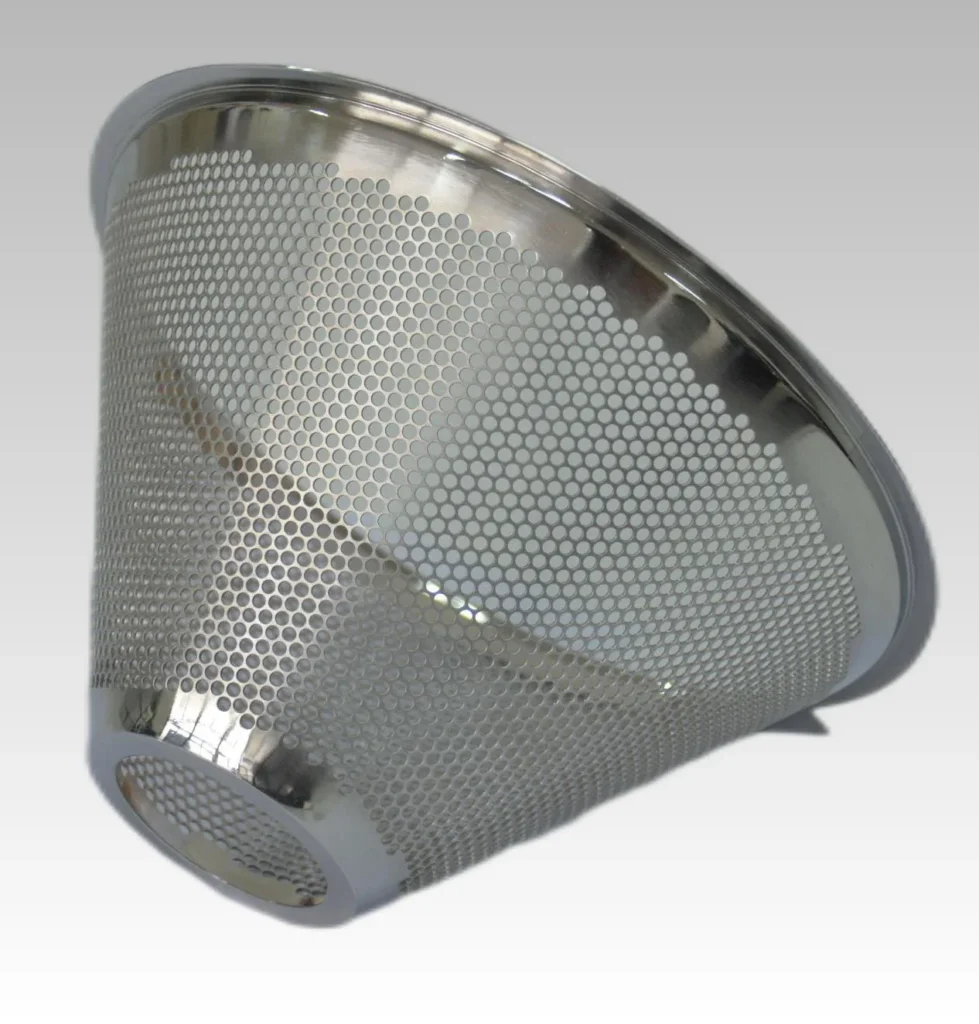

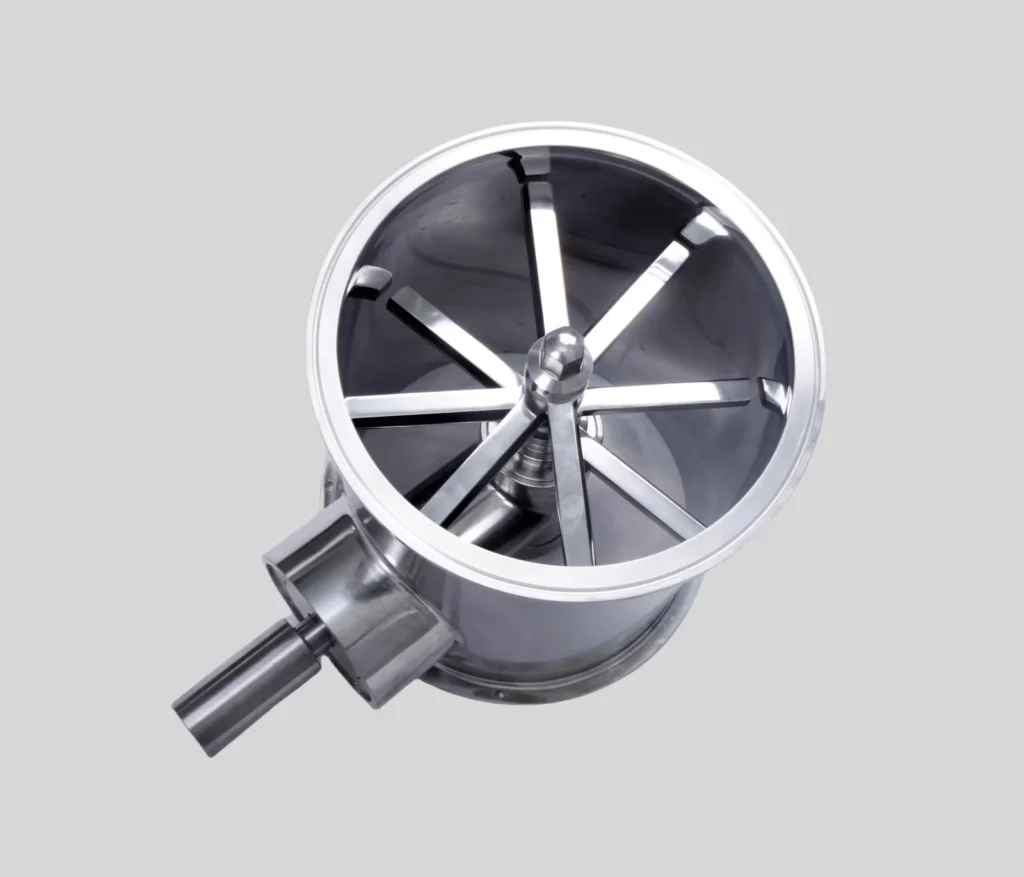

Oscillating rotor with quick-change screens handles both duties.
ZLJ-270-Y-EX / 140-Y-EX for explosion-protected zones.
Applications
- Wet granule sizing after VSG granulators
- Dry granule sizing before tableting
- Solvent-containing duty (EX models)
Product Images
Full Specifications
| Model | Throughput class | Note | Evidence |
|---|---|---|---|
| ZLJ-100 | to ~50 kg/h | compact | Manufacturer spec |
| ZLJ-140-Y | to ~250 kg/h | standard | Manufacturer spec |
| ZLJ-208-YT | mid class | two-screen head | Manufacturer spec |
| ZLJ-270-Y(-EX) | to ~1,500 kg/h | EX option | Manufacturer spec |
| ZLJ-300-Y | to ~3,000 kg/h | large frame | Manufacturer spec |
FAQ
How to choose between lower drive and upper drive granulator?
Lower drive suits stand-alone and mobile use with simple cleaning; upper drive (-YS) suits in-line installation under granulator discharge with height constraints. Share your layout for the recommendation.
Which ZLJ model matches a VSG-300 wet granulator?
ZLJ-208-Y / 300-Y class units pair with the VSG-300 bowl output; final sizing depends on batch discharge rate — we match it in the proposal.
Do you offer explosion-proof granulators?
Yes — full-body explosion-proof is a factory option; specify your zone requirements when requesting a quote.
